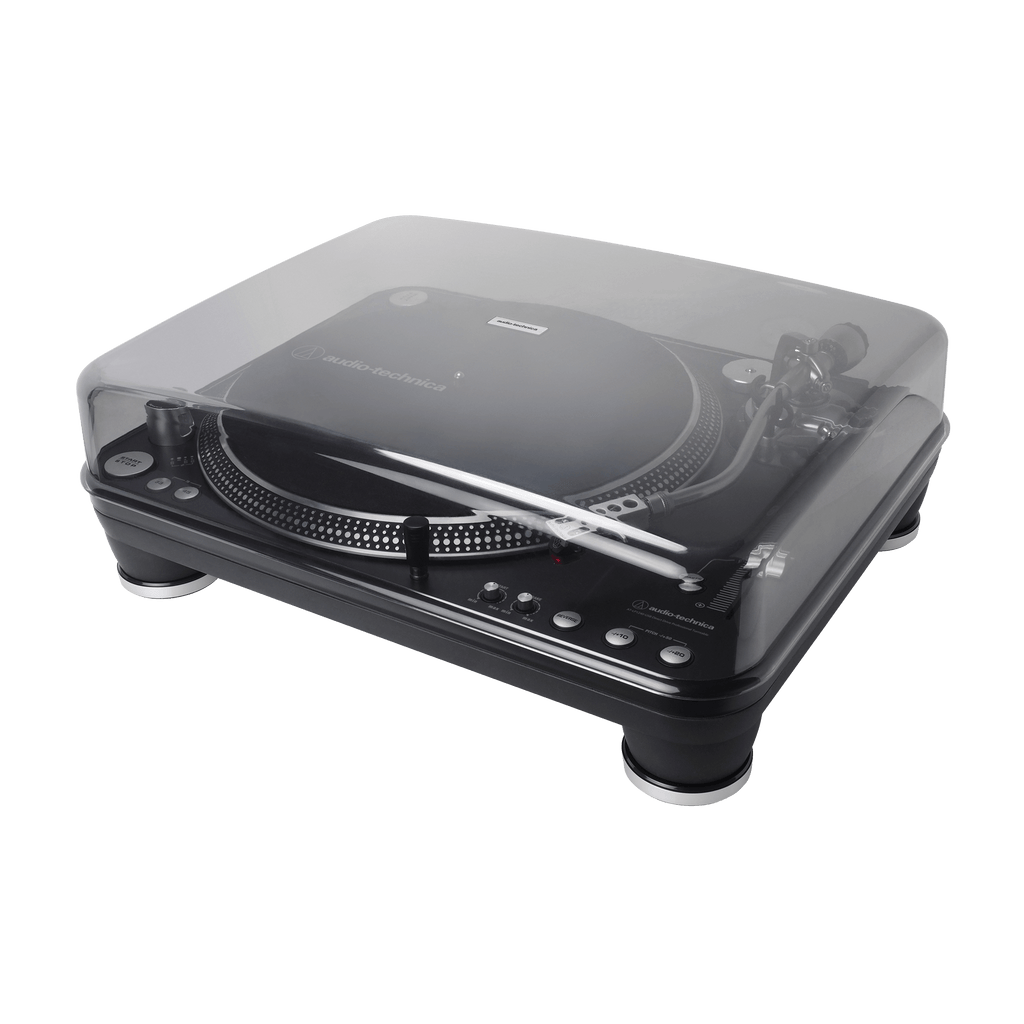

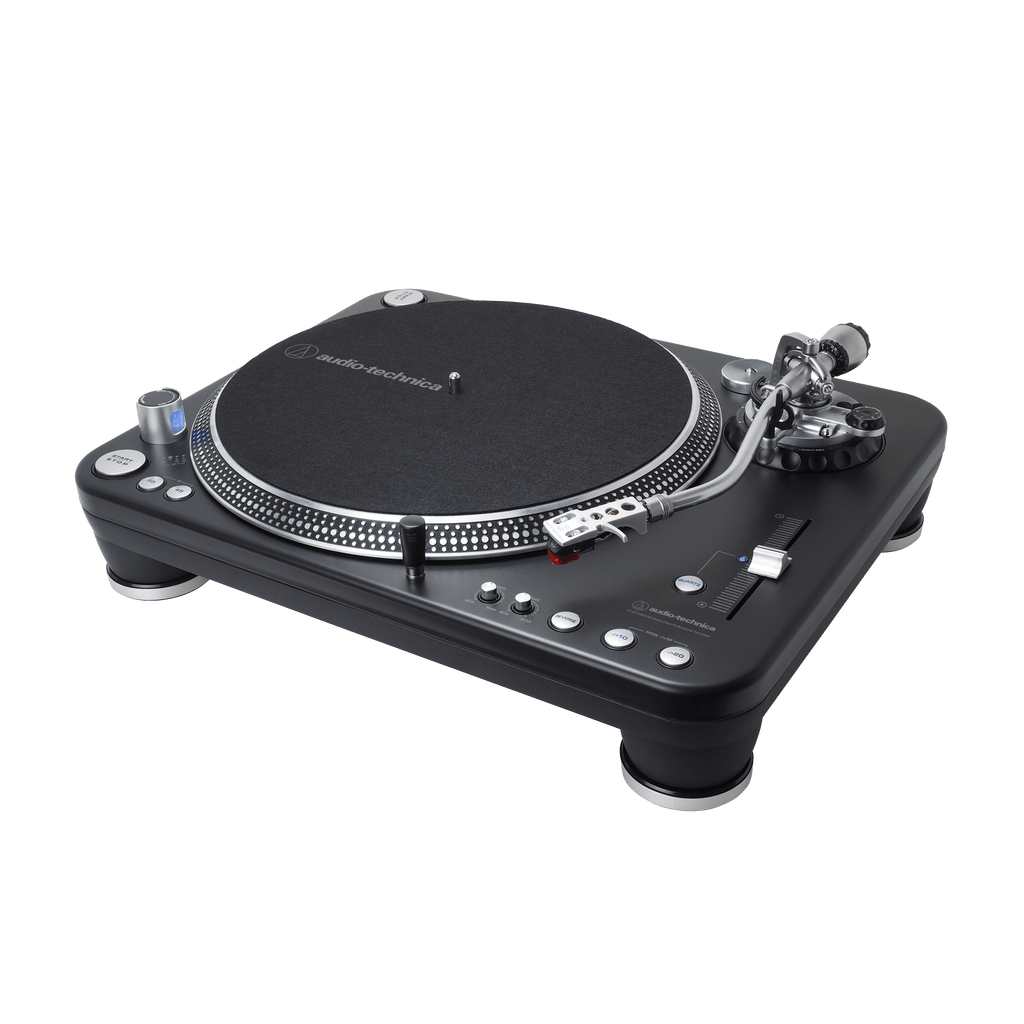

Audio-Technica AT-LP1240-USBXP Direct-Drive Professional DJ Turntable (USB & Analog) (AT-LP1240-USBXP)

Built to deliver exceptional music reproduction even under the most demanding conditions of professional use, the AT-LP1240-USBXP utilizes a powerful direct-drive 16-pole, three-phase motor for quick startup, unwavering speed stability along with easy back-cueing, forward and reverse play and quiet operation at 33-1/3, 45 or 78 RPM. The turntable features an S-shaped tone arm with adjustable tracking force (counterweight) and anti-skate adjustment. It comes with the AT-HS1 universal 1/2"-mount headshell and the AT-XP5 DJ phono cartridge.

Additional DJ-friendly features including a damped cast-aluminum platter with stroboscopic speed markings and slip mat, an illuminated speed indicator and adjustable pitch control, dual start/stop buttons, a removable stylus target light, a dedicated tone arm grounding lug, a hydraulically damped lift lever and a locking tone arm rest that keeps the arm and cartridge in place during transport.

Audacity® and other compatible third-party software packages can be used to convert the audio on a record to MP3, WAV or other format digital audio files.

• Direct-drive, high-torque, multipole motor for demanding DJ use
• Fully manual operation
• Start and brake control adjustments
• Selectable 33/45/78 RPM speeds
• Professional anti-resonance, damped die-cast aluminum platter with DJ-style slip mat
• AT-HS1 universal ½"-mount headshell
• Balanced S-shaped tone arm with hydraulically damped lift control, anti-skate, height adjustment and lockable rest
• Audacity and other compatible third-party software packages can be used to create digital files from vinyl records
• Built-in switchable phono pre-amplifier with detachable RCA output cables
• Stroboscopic platter with speed indicator
• Forward/reverse operation and variable pitch control with quartz speed lock
• Removable stylus target light for easier cueing in low light

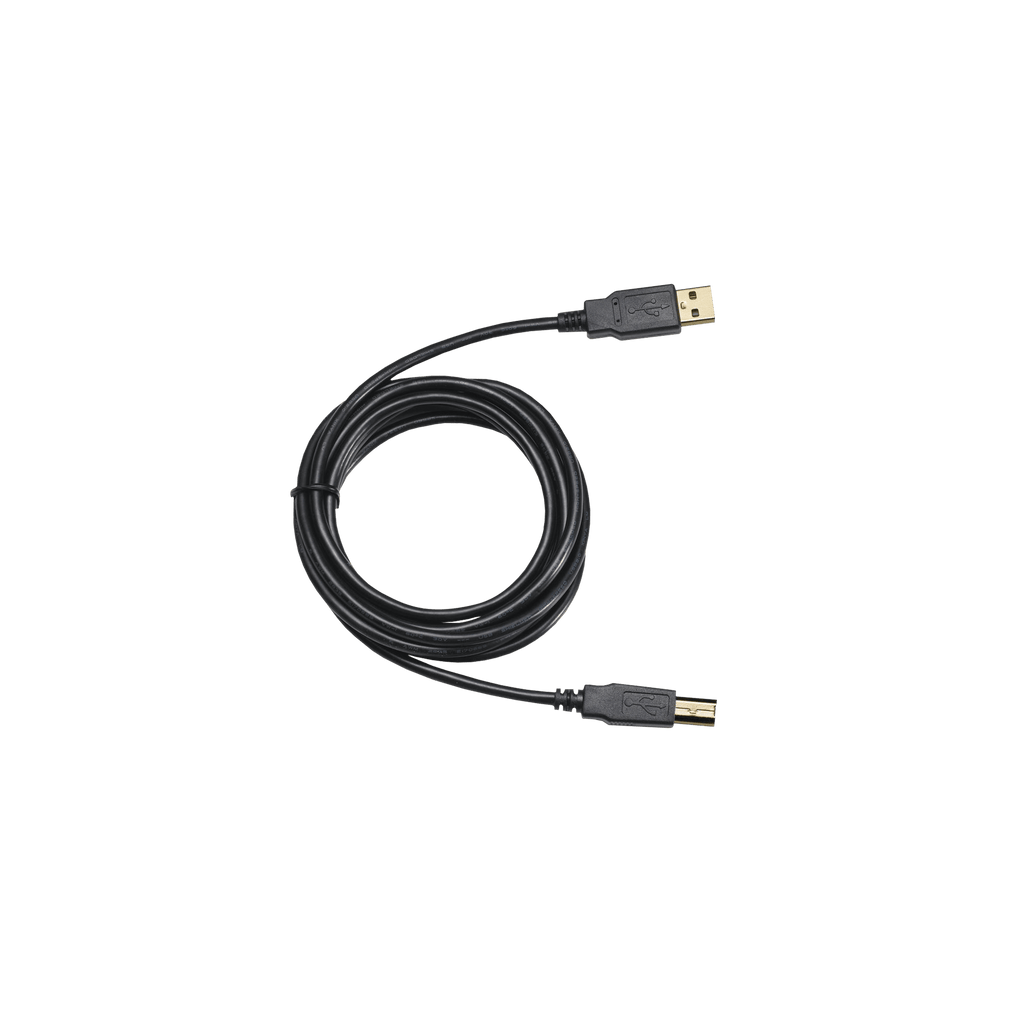

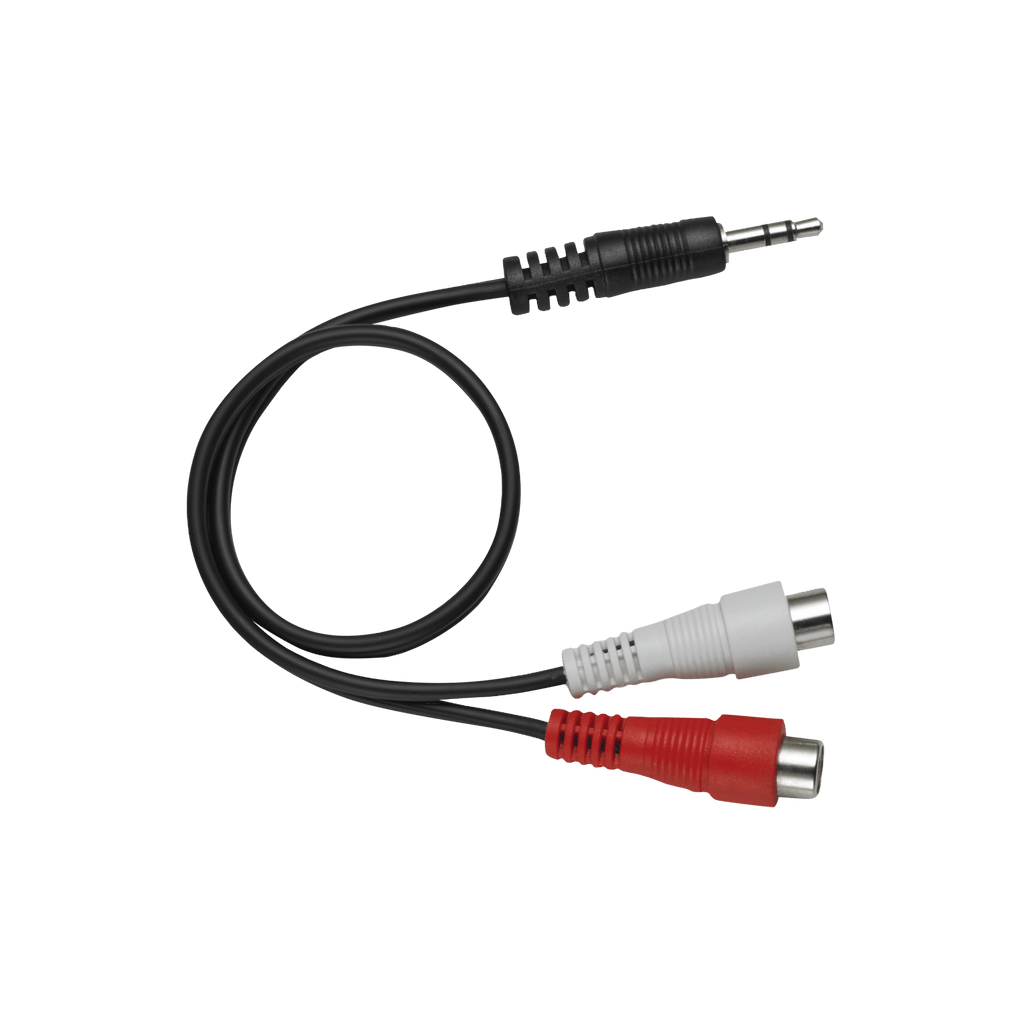

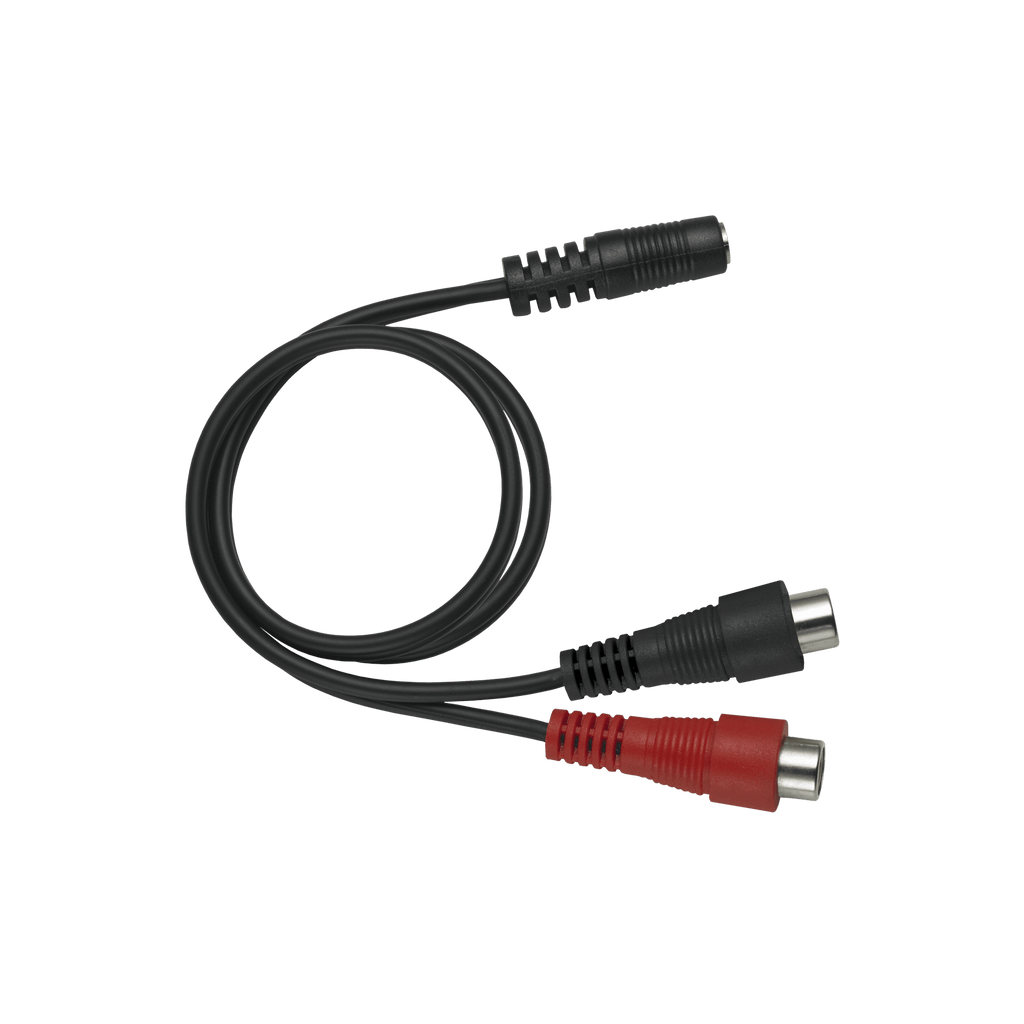

• Includes: Dual RCA output cable with ground wire; USB cable; power cord; 45 RPM adapter; AT-XP5 DJ phone cartridge; headshell; counterweight; stylus target light; DJ-style slip mat; removable dust cover



Turntable
Type	3-speed, fully manual operation
Motor	16-pole, 3-phase, brushless DC motor
Drive Method	Direct drive
Speeds	33-1/3 RPM, 45 RPM, 78 RPM
Turntable Platter	332 mm dia. die-cast aluminum
Starting Torque	>4.5 kgf.cm
Braking System	Electronic brake
Wow and Flutter	< 0.1% WRMS (JIS WTD) with 33 RPM
Signal-to-Noise Ratio	> 55 dB (DIN-B)
Output Level	Pre-amp "PHONO": 5.5 mV nominal at 1 kHz, 5 cm/sec Pre-amp "LINE": 300 mV nominal at 1 kHz, 5 cm/sec
USB Function	A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 1.1 Compliant Windows 7 or above, or MAC OS X or above
Power Supply Requirements	120V AC, 60 Hz
Dimensions	450.0 mm (17.72") W x 353.0 mm (13.90") D x 166.5 mm (6.56") H
Weight	12.5 kg (27.6 lbs.), without dust cover
Accessories Included	Slip mat; dust cover, platter; 45 RPM adapter; counterweight; AT-XP5 DJ phono cartridge; AT-HS1 headshell; power cord; USB cable; dual RCA (male) cable with integrated ground wire; stylus target light
Notes	RIAA: 20-20kHz, +1/-3dB (In: 1.5mV 1kHz) Tone arm type: Static balanced S-shaped tone arm with detachable headshell Effective arm length: 230 mm Overhang: 15 mm Height of tone arm adjustment range: 0-6 mm Tracking error angle: Less than 3 degrees Applicable cartridge weight: 13-18 g with headshell Anti-skating range: 0-3 g Replacement Stylus: ATN-XP5
