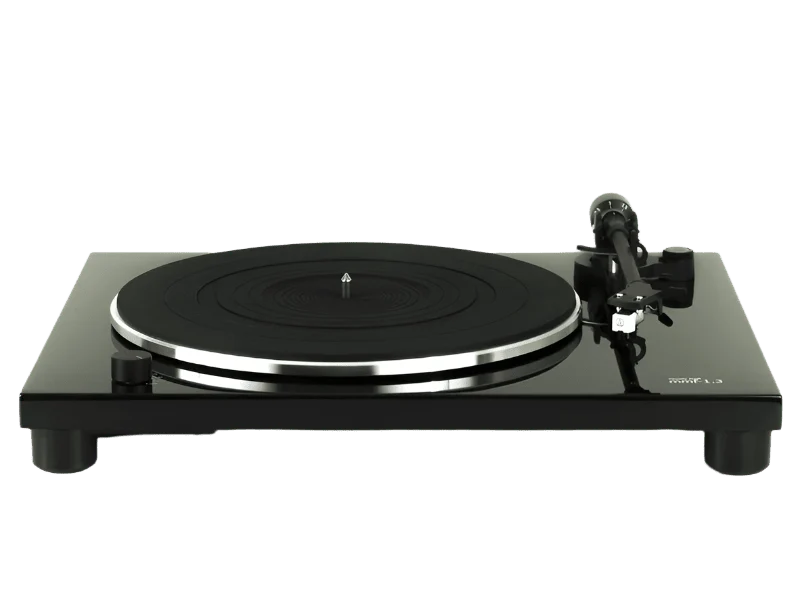

Music Hall MMF 1.3 Turntable

Meet the MMF 1.3 turntable.

Perfect warmth and Depth from Music Hall

The Music Hall MMF-1.3 sets a new benchmark for affordable audiophile turntables, adding depth and warmth to your music experience.

With a built-in phono preamplifier and a quality, pre-mounted cartridge, the MMF-1.3 is everything you need to start listening to vinyl right out of the box.

The MMF1.3 is designed to deliver Music Hall's trademark best-in-class sound quality, thanks to its inherently stable, well-isolated, and superbly engineered platform, plus sought-after features like electronic three-speed control and an inbuilt phono preamp. A pre-mounted cartridge and removable headshell mean that set- up and operation couldn't be simpler.

The Music Hall MMF-1.3 turntable is a three-speed, belt-driven, high-quality record player at an affordable price. The MMF-1.3 is built for simplicity, quality and convenience, with high-performance components, electronic speed control, an inbuilt phono pre-amplifier, and a high-quality cartridge and diamond stylus.

Product Features

• Three-speed, low-noise, fully manual turntable
• Pre-mounted & aligned AT 3600L MM cartridge
• Aluminium tonearm with removable headshell for superb tracking ability
• Belt drive, with electronic speed switching: 33/45/78 RPM
• An inbuilt, defeatable Phono preamp allows connection to normal line-level/AUX inputs
• Ultra-precise frequency DC-driven AC generator for ultimate speed stability
• Cover included

Focus on Components

This new entry-level turntable provides a feature set that is unrivalled at its price. The construction of the MMF-1.3 has been simplified to focus on the critical components: the bearing, the motor, and the tonearm.

A Complete Package

A 3-speed belt-driven turntable that comes complete with a tonearm, mounted cartridge, and built-in phono amp. The included Audio Technica AT3600L cartridge has been precision aligned.

Pre-Mounted Cartridge

A quality Audio-Technica cartridge is pre-mounted and precision-aligned.

Speed Control

A built-in speed control circuit ensures the accuracy of the MMF-1.3's 3 speeds.

Built-In Phono Preamplifier

A built-in phono preamplifier allows you to connect directly to your current system.

Dust Cover

A hinged dust cover keeps your MMF-1.3 protected when not in use.

Product Features

• belt drive
• electronic speed-controlled motor
• 33 1⁄3, 45, and 78 rpm
• aluminium tonearm with removable headshell
• piano black MDF plinth
• vibration-damping rubber platter mat
• Audio Technica AT3600L cartridge ($50 value)
• aluminium platter
• dust cover
• built-in phono pre-amp
• removable RCA cables
• vibration-damping feet

Technical Specifications

General

Power Supply
DC12V, 2.0A universal power supply

Consumption
4W

Dimensions (W x D x H)
435 x 367 x 106 mm

Weight
5 kg

Turntable

Type
3-speed full manual

Motor
DC motor

Drive
Belt Drive

Turntable Platter
296 mm dia. aluminum die-cast

Speeds
33 1/3, 45, and 78rpm

Wow and Flutter
Typical: less than 0.1% WTD at 3 kHz RMS (CD-4005)

Limit
Less than 0.15% WTD at 3 kHz RMS (CD-4005)

Signal-to-Noise Ratio
more than 62dB (DIN-B) (SS-4242)

Speed Tolerance
3000 Hz +/-1% (CD-4005)

Power Supply
DC12V, 2.0A Universal PSU

Power Consumption
4W

Tonearm Type
Dynamic balanced straight-shaped with soft damping control

Effective arm length
221.5 mm

Overhang
19 mm

Offset angle
25.61

Tracking error angle
3 degrees or less

Stylus pressure adjustment method
Rotation movability

Arm lifter
Oil damper
